Last Monday, I wrote that RAG is not a strategy; it’s an implementation pattern. Several of you replied, asking the natural follow-up: “Okay, but when we do choose RAG, how do we do it right at enterprise scale?”
Fair question. Here’s the answer.
The majority of enterprise RAG deployments fail; industry practitioners estimate that as many as 80% of projects experience critical failures before reaching sustainable production. And the root cause isn’t the technology. It’s the architecture. Teams treat RAG as a prototype pattern and deploy it to production without the surrounding infrastructure it needs to survive at scale.
Today, I’m going to walk you through five architecture patterns for enterprise RAG, when to use each one, and the production checklist that separates POC-grade RAG from systems that actually scale.

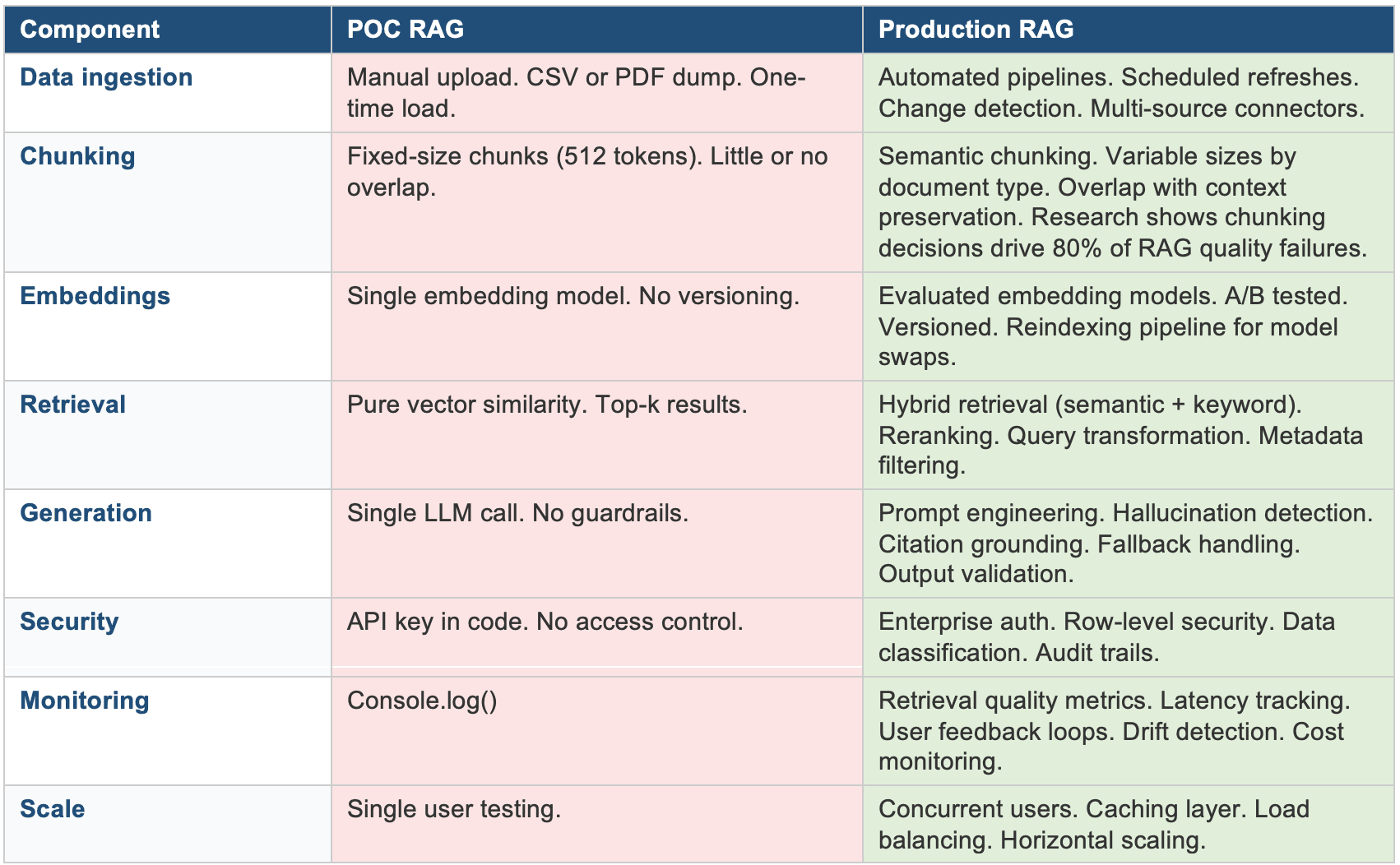

The Anatomy of Production RAG (vs. POC RAG)
Let’s start with what most teams build and why it breaks:
The gap between these two columns is where most enterprise RAG deployments fail. Not because the retrieval doesn’t work, but because every surrounding system is POC-grade.
5 Architecture Patterns for Enterprise RAG
RAG is not a single architecture. In 2026, it’s evolved into a spectrum of patterns, each suited to different enterprise requirements. Here are the five you need to understand:

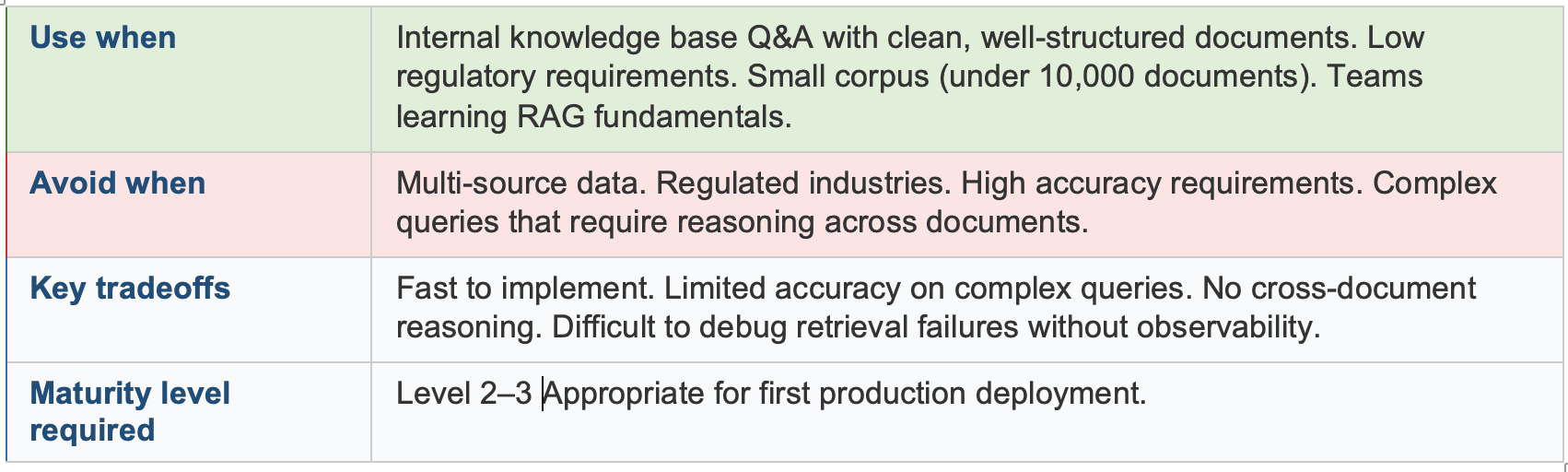

Pattern 1: Basic RAG
The starting point. Simple retrieval-augmented generation with a single vector store.
Pattern 2: Hybrid RAG
Combines semantic search (vector embeddings) with lexical search (keyword/BM25) for more robust retrieval.

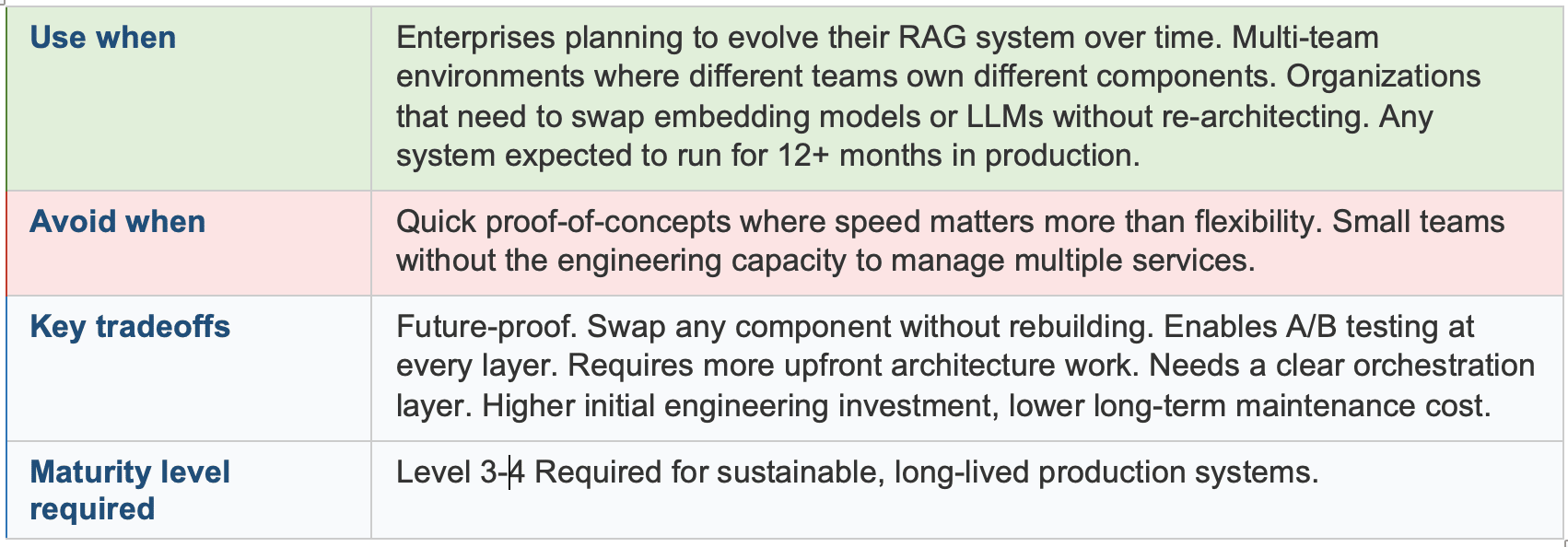

Pattern 3: Modular RAG
Treats ingestion, chunking, retrieval, reranking, and generation as independent, swappable components.

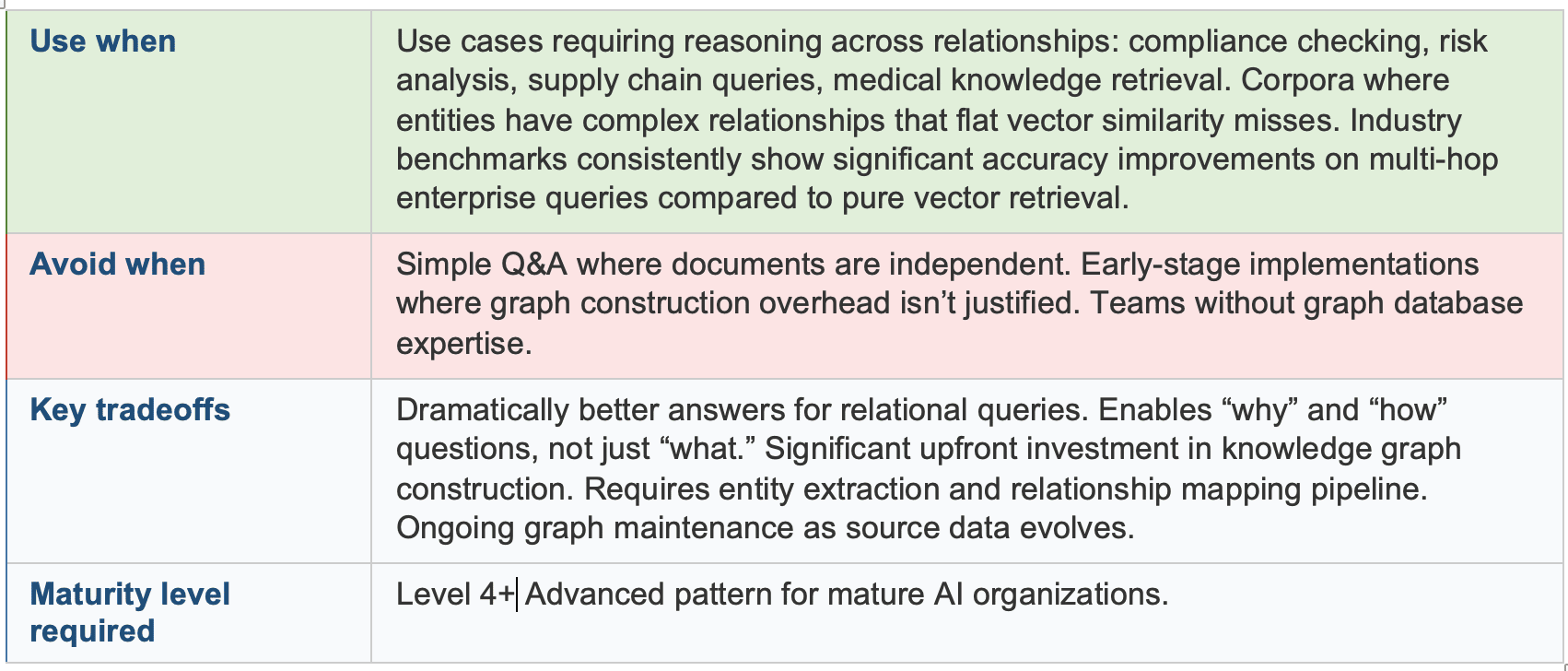

Pattern 4: Graph RAG
Augments vector retrieval with knowledge graph traversal for relationship-aware, multi-hop reasoning.

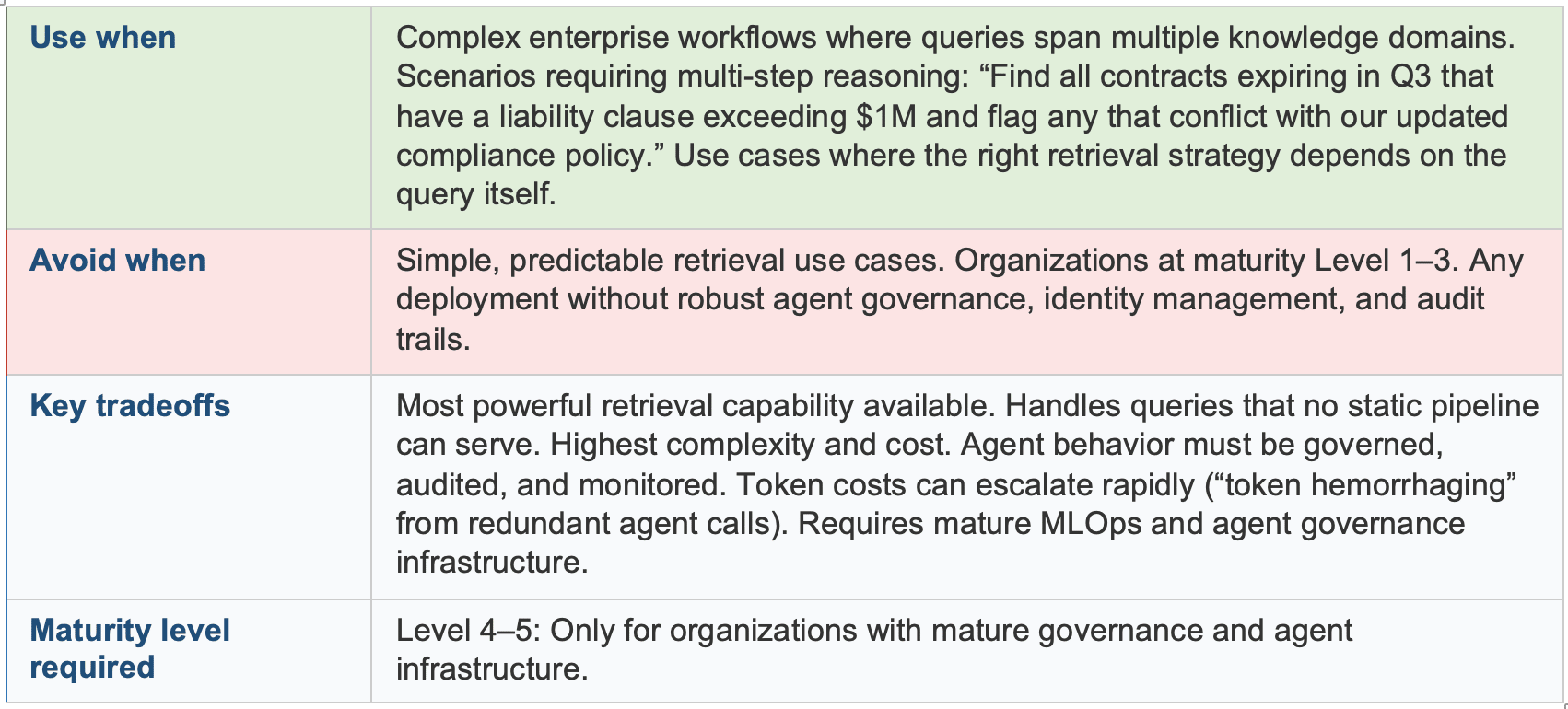

Pattern 5: Agentic RAG
AI agents dynamically decide retrieval strategy, select sources, and iteratively refine queries based on initial results.

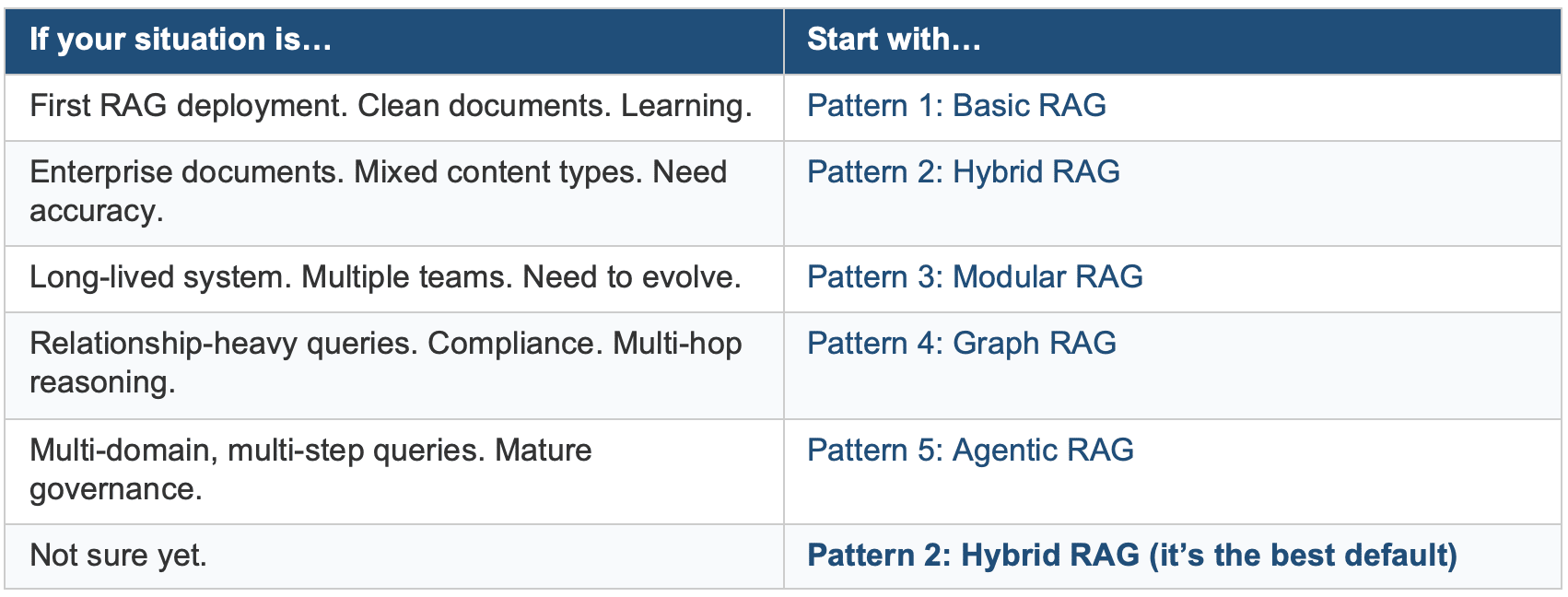

The RAG Pattern Decision Framework
Use this decision tree to select the right pattern for each use case:

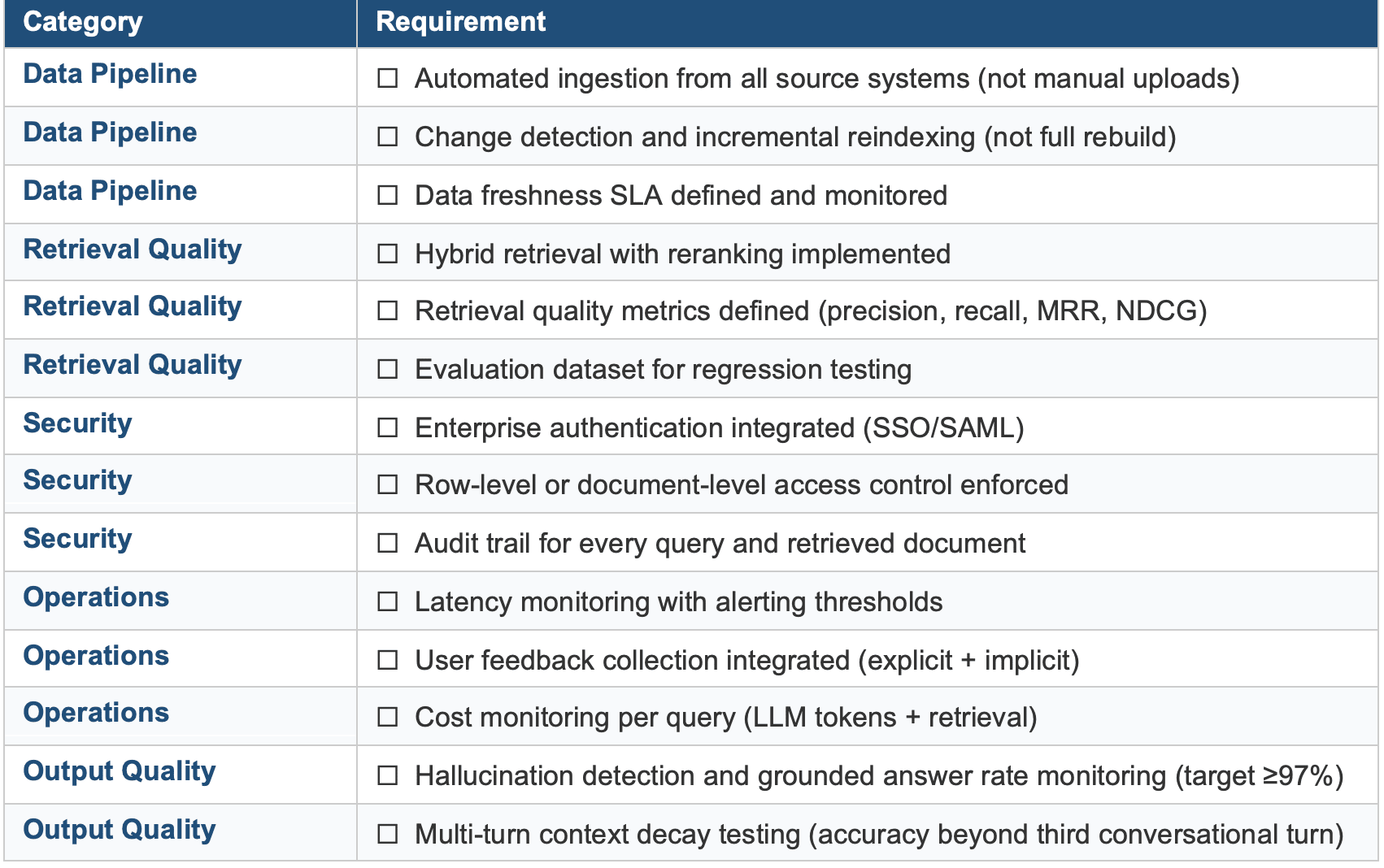

The Production RAG Checklist
Before any RAG system goes live, verify these twelve requirements. I’ve organized them into the categories that map to the most common production failures:
Scoring: If fewer than 10 of 14 are checked, your system is not production-ready. It may work, but it won’t scale, won’t survive an audit, and won’t maintain quality over time. Fix the gaps before you launch.

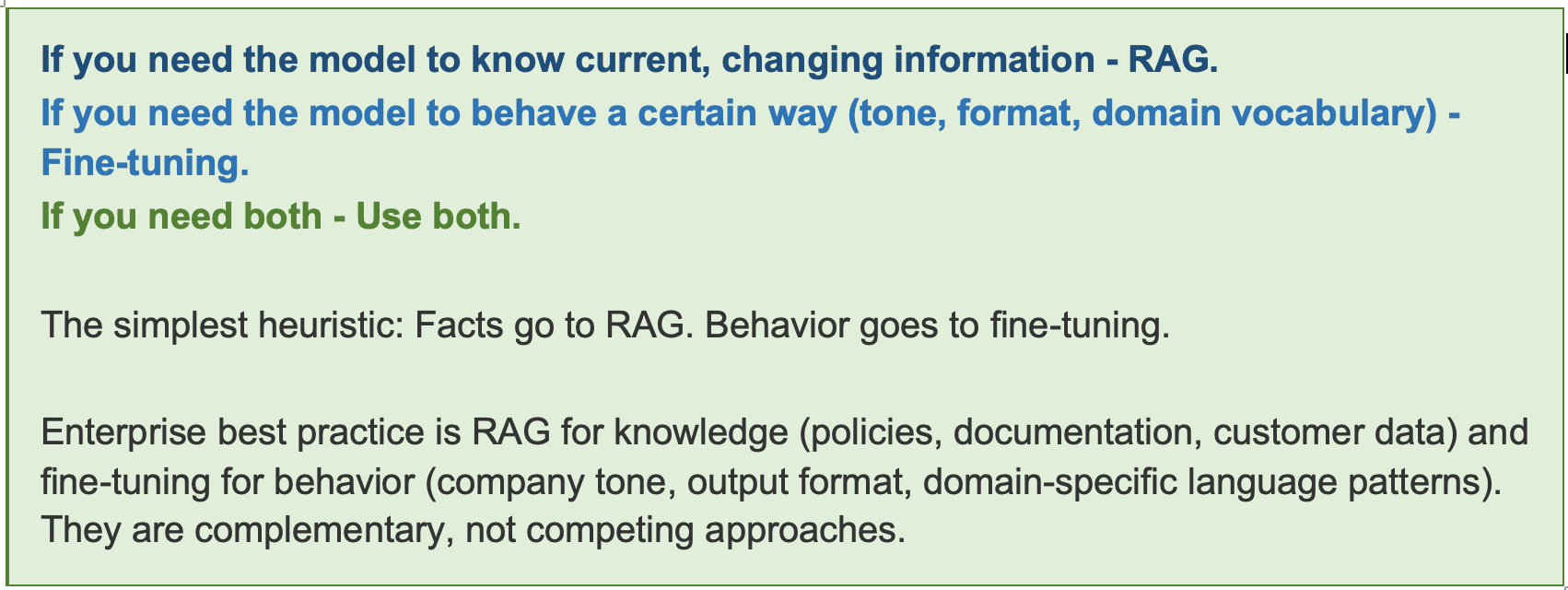

RAG vs. Fine-Tuning: The Enterprise Heuristic
I get this question in every architecture review. Here’s the clearest way to think about it:

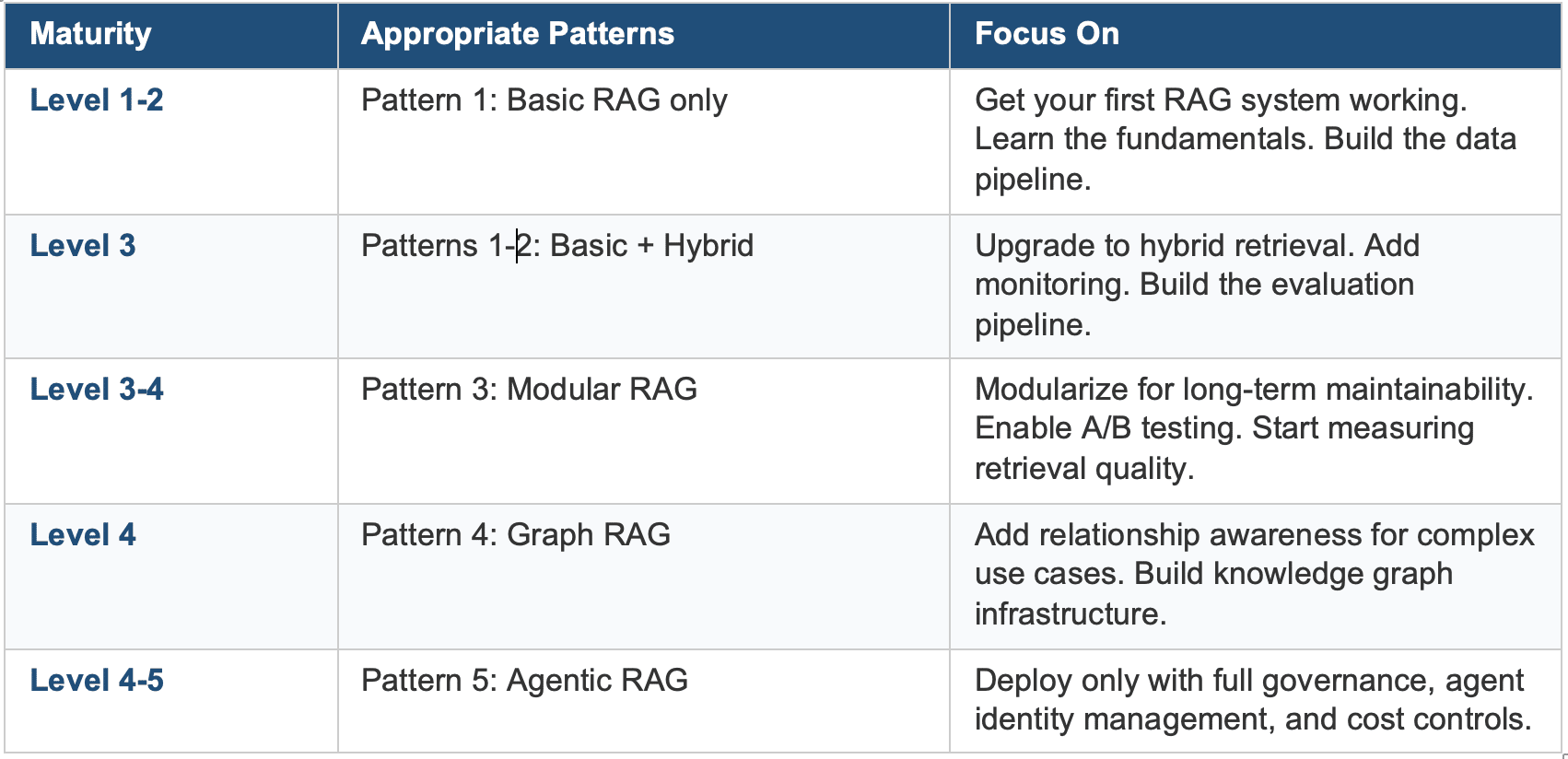

RAG Patterns Mapped to GenAI Maturity Levels
One of the most common mistakes I see is enterprises deploying the Pattern 5 (Agentic RAG) architecture when their organization is at Maturity Level 2. The architecture must match the maturity. Here’s the mapping:
The Enterprise Architect’s Takeaway

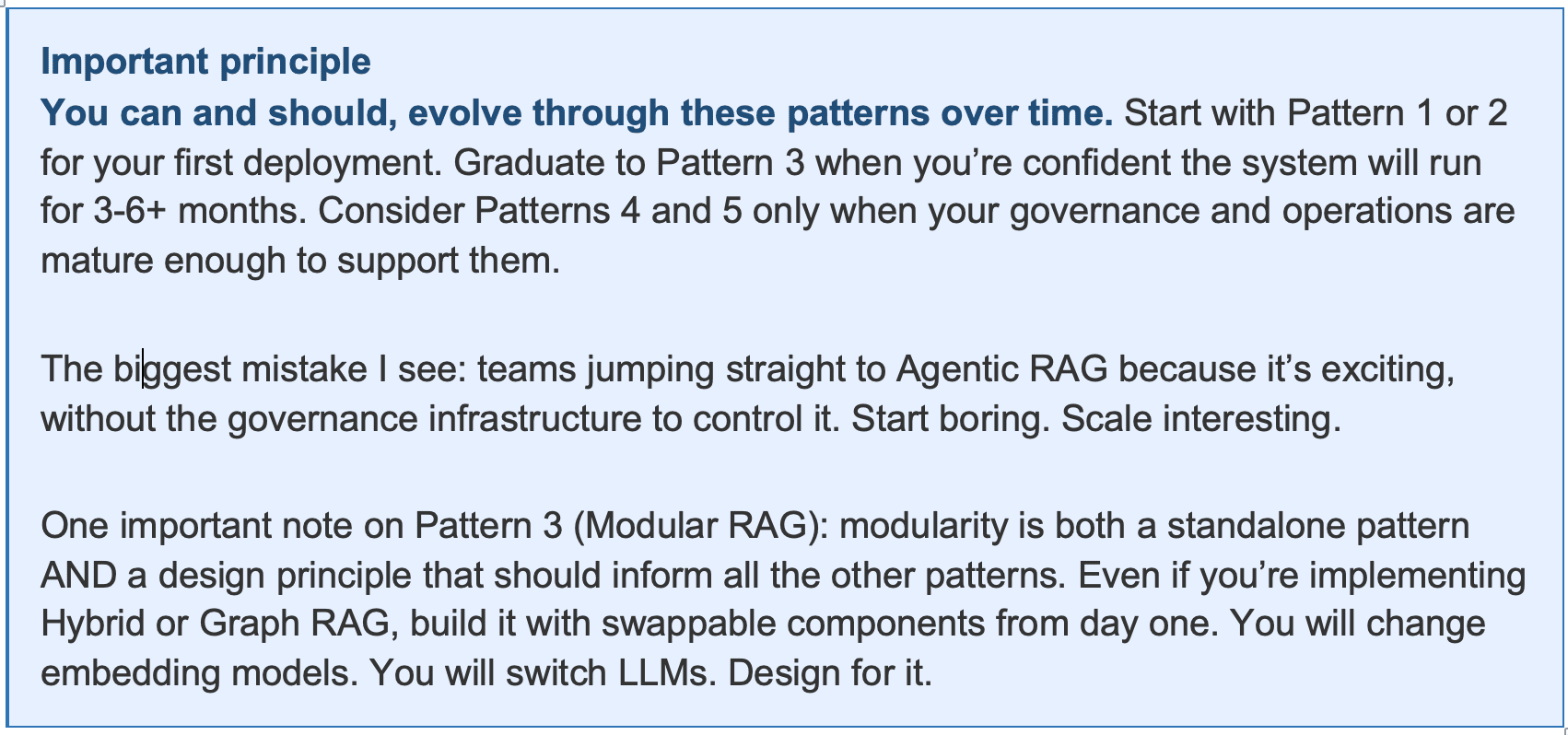

RAG in 2026 is not a single pattern. It’s a maturity spectrum. The five patterns in this edition give you a roadmap for evolving your retrieval architecture as your organization’s maturity grows.

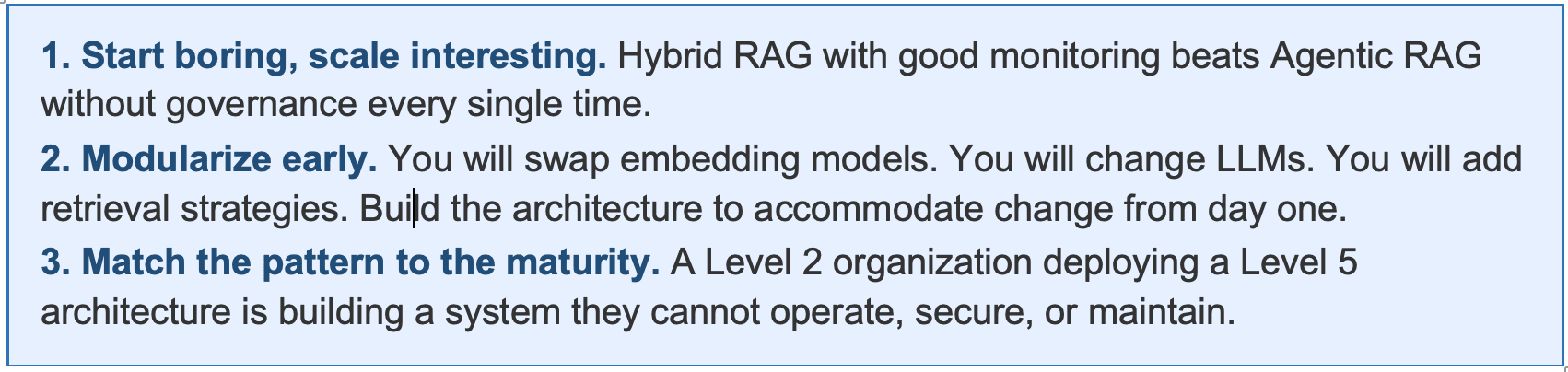

Three principles to carry into your next architecture review:
